Parlante Pioneer Ts g1045r

PARLANTE PIONEER TS G1045R

Tamaño: 10 cm
Potencia de Música Máx. (Nominal) : 230 W (30 W)
Respuesta de frecuencia: 38 Hz a 29 kHz
Sensibilidad (1W/1M): 84 dB
Impedancia: 4 Ohm
Profundidad de montaje: 43 mm
Dimensiones de recorte: ø106 mm

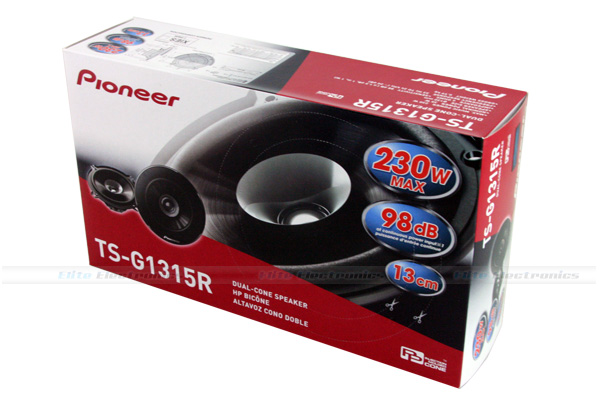

Parlante Pioneer Ts g1315r

PARLANTE PIONEER TS G1315R

Tamaño: 13 cm
Potencia de Música Máx. (Nominal) : 230 W (35 W)
Respuesta de frecuencia: 33 Hz a 24 kHz
Sensibilidad (1W/1M): 88 dB
Impedancia: 4 Ohm
Profundidad de montaje: 44 mm
Dimensiones de recorte: ø121 mm

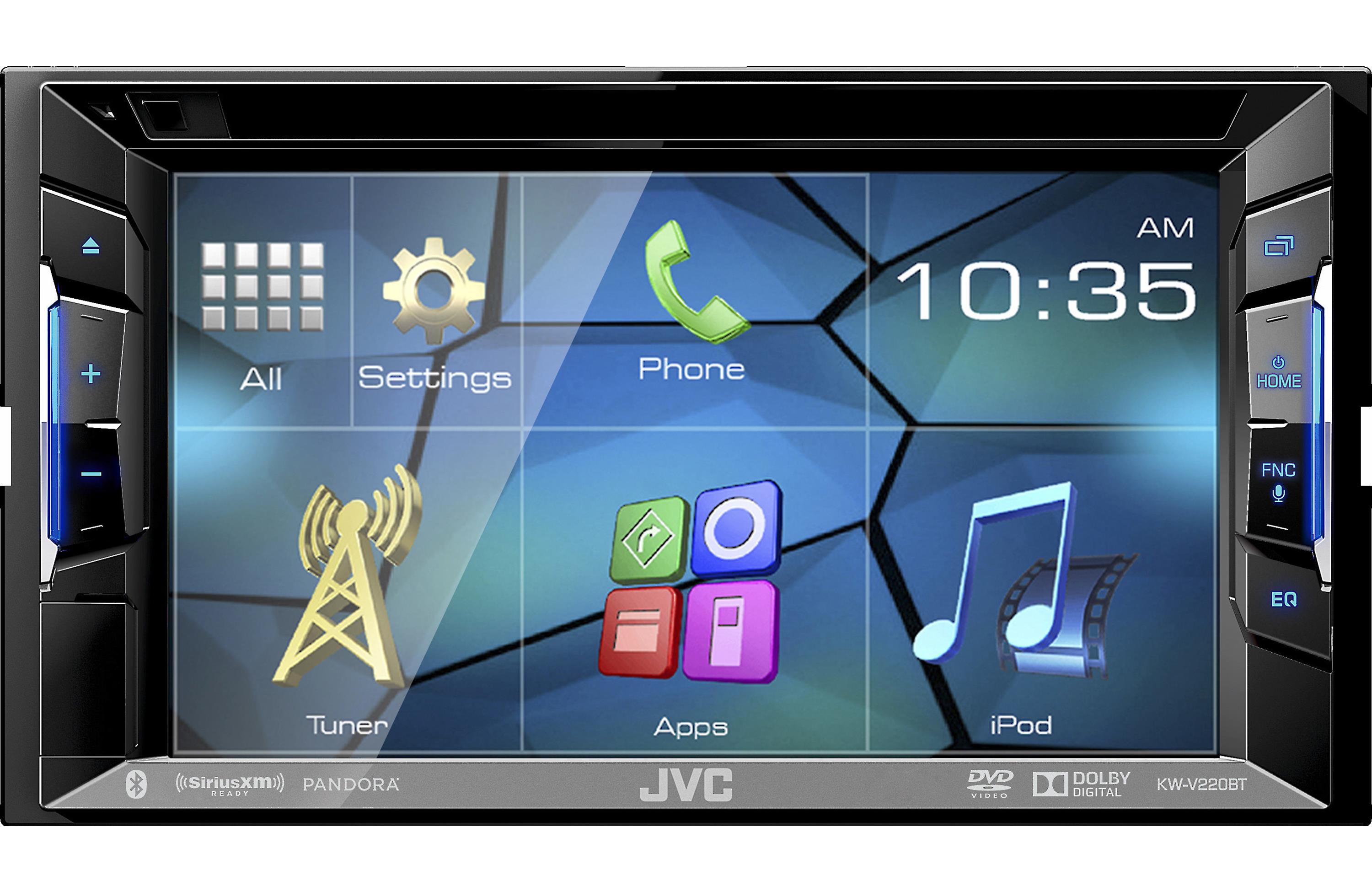

Radio Jvc Kw-v220BT

RADIO JVC KW-V220BT

General Features:

DVD/CD receiver with AM/FM tuner
built-in internal amp (22 watts RMS/50 peak x 4 channels)
6.2" touchscreen with blue button illumination
fits double-DIN dash openings

Smartphone Features:

built-in iPod, iPhone, and iPad control (see Details tab for model compatibility)
built-in Android music control and charging of select Android devices using the USB connection (requires JVC Music Play app installed on phone)
Pandora control with iPhone and Android; Apple Music control with iPhone
built-in Bluetooth for hands-free calling and audio streaming with dual phone connection

Audio/Video Features:

plays CDs, DVDs, and USB memory devices (see Details for full capabilities)
13-band equalizer with digital time alignment
K2 technology improves the digital sound for all music sources
Sound Lift compensates for low speaker positions
Volume Link EQ boosts specific frequencies to compensate for road noise

Expandability:

compatible with SiriusXM satellite radio tuner
optional wireless remote
inputs: front USB input, rear A/V input, rear-view camera input
outputs: rear video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)

Radio Jvc KD ar855bt

RADIO JVC KD AR855BT

Tecnología inalámbrica Bluetooth® (Integrada)
Atenuador automático
Panel frontal extraíble
(Perfil de acceso a agenda telefónica, Transferencia de agenda telefónica, Llamada manos libres, Streaming de audio, AVRCP, Notificación de recepción de mensajes SMS, Marcación por reconocimiento de voz, Modo de comprobación de compatibilidad, Conexión de 2 teléfonos fácil y segura (SSP), Conexión continua de 2 teléfonos, Control de radio por Internet para smartphone, Modo Eyes-Free de Siri para iPhone
Adaptador opcional preparado para mando a distancia en el volante
Mando a distancia inalámbrico
Función Beep Tone Support
Atenuador de Iluminacion Automático
Control de brillo Separado
Subwoofer de control
MOS-FET 50 W x 4
Conexión permanente de 2 teléfonos
Control de aplicación para smartphone (App JVC)
JVC Smart Music Control V.3 para Android (App vía Bluetooth® & USB)
Control musical JVC para Android (App vía USB)
Generador de listas de reproducción JVC para memoria USB/Thumb Drive (software PC Windows® vía USB)
Audio USB para iPod/iPhone etc.
Control de 2 vías para iPod/iPhone (Unidad principal/iPod o iPhone)
Modo iPod/iPhone
Puerto USB frontal (WAV/MP3/WMA/iPod y iPhone)
Fuente de alimentación USB 1A
Cambio de modo a almacenamiento masivo
Entrada AUX (Frontal)
Compatible con MP3/WMA/WAV con ID3/WMA Tag (CD/SD)
Sintonizador de radio con RDS
Sintonizador de proceso digital
Programador radio
Memoria de respaldo
iEQ paramétrico de 3 bandas
Easy EQ
12 preajustes de ecualización
Fuente Link EQ
Digital Track Expander
Control de nivel de intensidad
Filtro de paso alto/paso bajo
3 Salidas Pre Amplficadas de 4.8V

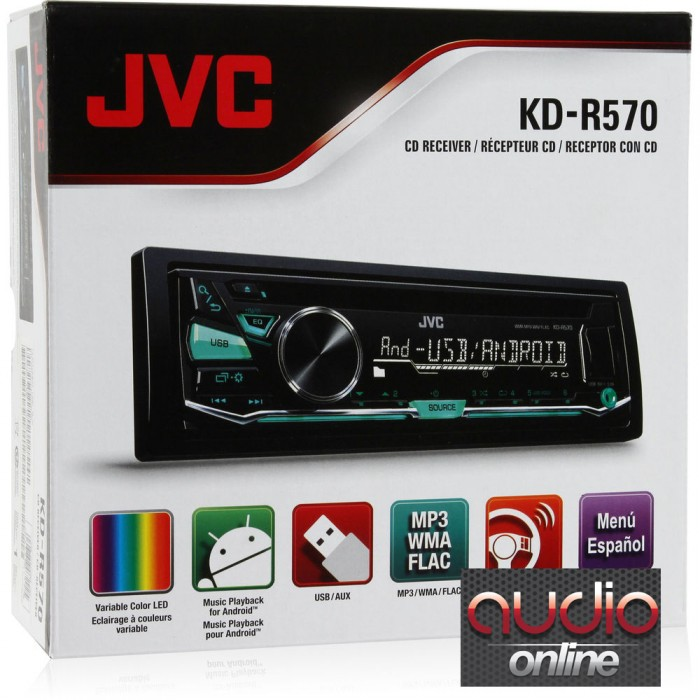

Radio Jvc Kd R570

RADIO JVC KD R570

Peak: 50 watts x 4 channels
RMS: 22 watts x 4 channels
Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
Remote control included
CD text information display
MP3 ID3 Tag Display (Title/Artist/Album)
AM/FM tuner with 18FM/6AM presets
CD S/N Ratio: 105 dB
Variable color illumination
Authorized Internet Dealer
1-year Manufacturer's Warranty

Playback and Audio Features:

Music audio playback for Android, Free JVC Music Play App required
Supports Android OS 4.1 and above
CD, MP3/WMA/WAV Playback
MP3/WMA/WAV/FLAC Playback via USB
3-band graphic equalizer with 12 selectable tone curves (11 Preset, 1 User)
3.5mm Front Audio Auxiliary Input
1 Sets of 2.5V preamp outputs (rear/subwoofer)

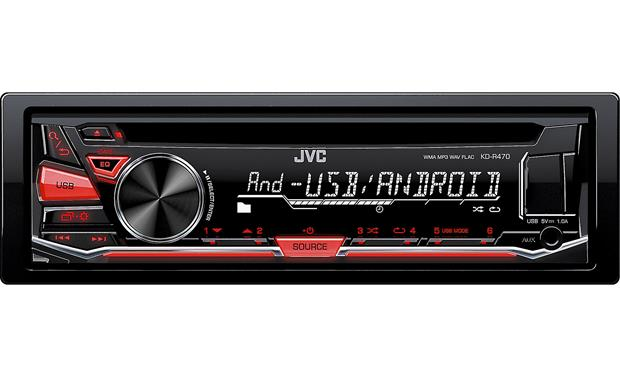

Radio Jvc Kd r470

RADIO JVC KD R470

CD receiver (10A fuse)
Face (attached)
Sleeve (installed)
Trim ring (installed)
Wiring harness
Remote control (RM-RK52)
CR2025 3V Lithium battery (installed in remote)
2 Radio removal tools
Face-fixing screw
Instruction Manual (En/Fr/Sp)
Warranty Information
"Caution!" note (attached to wiring harness)
Face-fixing screw note

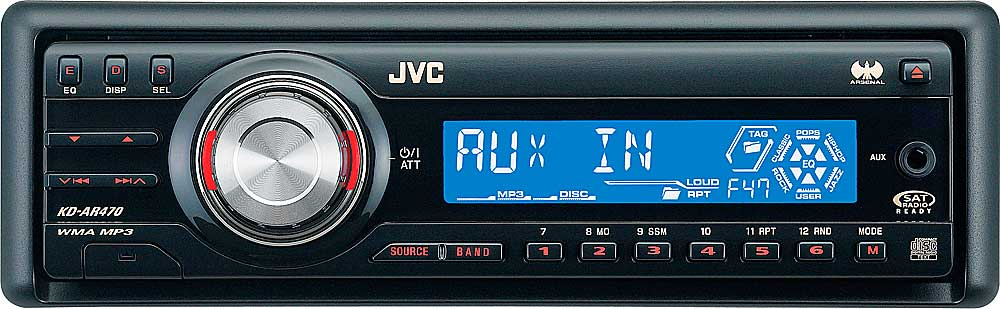

Radio Jvc Kd AR470

RADIO JVC KD AR470

CD Player KD-AR470
CD-R/RW Compatible Yes
CD Text Yes
MP3/WMA Compatible with ID3 Tag/WMA Tag Yes
Random/Repeat Play Yes
Frequency Response 5 - 20,000Hz
Disc Name Registration Yes
Dynamic Range 98dB
Signal-to-Noise Ratio 102dB
Direct Track Access (1-12) Yes
Channel Separation More than 85dB
Wow & Flutter Less than measurable limit
+/-10 Skip Function Yes
CD Changer Control KD-AR470
MP3 Control Yes (with CH-X1500)
CD Text Yes (with CH-X1500)
Disc Name Registration Yes
Direct Disc Select (1-12) Yes
Random/Repeat Play Yes
+/-10 Skip Function Yes
Display KD-AR470
Display Type
Blue Color Display Yes
Level Meter Yes
Switchable Dimmer Yes (LCD only)
iPod/iPhone Control KD-AR470
Rndom/Repeat Play Yes
Text Yes
Play / Pause / Skip / Search Yes
Tuner KD-AR470
Tuner Type
HS-II Yes
Preset Stations 18 FM, 6 AM
SAT Radio Ready Yes
FM
Frequency Range 87.5 - 107.9MHz
Usable Sensitivity 11.3dBf (1.0uV/75 ohms)
50dB Quieting Sensitivity 16.3dBf (1.8uV/75 ohms)
Stereo Separation 35dB
SSM (for FM) Yes
AFNS/PNC Yes
Seek (Up/Down) Yes
AM
Frequency Range 530 - 1,710kHz
Sensitivity 20uV
Selectivity 35dB
Stereo/Mono Switch (for FM) Yes
Station Name Registration Yes
Amplifier KD-AR470
Maximum Power Output 200W (50W x 4)
EQ
cEQ Yes
Audio DAC
TI/Burr-Brown 24-bit DAC Yes
Loudness Control Yes
Load Impedance 4 ohms (4 - 8 ohms allowable)
Line Output Impedance 1k ohms
Continuous Power Output (RMS) (CEA-2006 Compliant) 4CH: 18 watts per channel into 4 ohms, 40Hz - 20kHz, at no more than 1.0% total harmonic distortion + N
Volume Attenuator Yes
Balance/Fader Control Yes
Max. Amp Gain Switcher Yes
Front AUX Input Yes
Line Output Terminals (Pair) 2 Pairs (Gold-Plated)
Frequency Response 40 - 20,000Hz
General KD-AR470
Detachable Face Panel Yes
Wireless Remote Control
Oval-Shaped Wireless Remote Control Yes
Dimensions (W x H x D)
Installation Size 182 x 52 x 150mm
Panel Size 188 x 58 x 11mm
Detachable Face Plate Size 169 x 44.5 x 19.1mm
Face Type
Flip-Down Face Yes
Rotary Encoder Yes
COMPU PLAY Yes
Tel. Muting Yes
Power-Off Mode Eject Yes

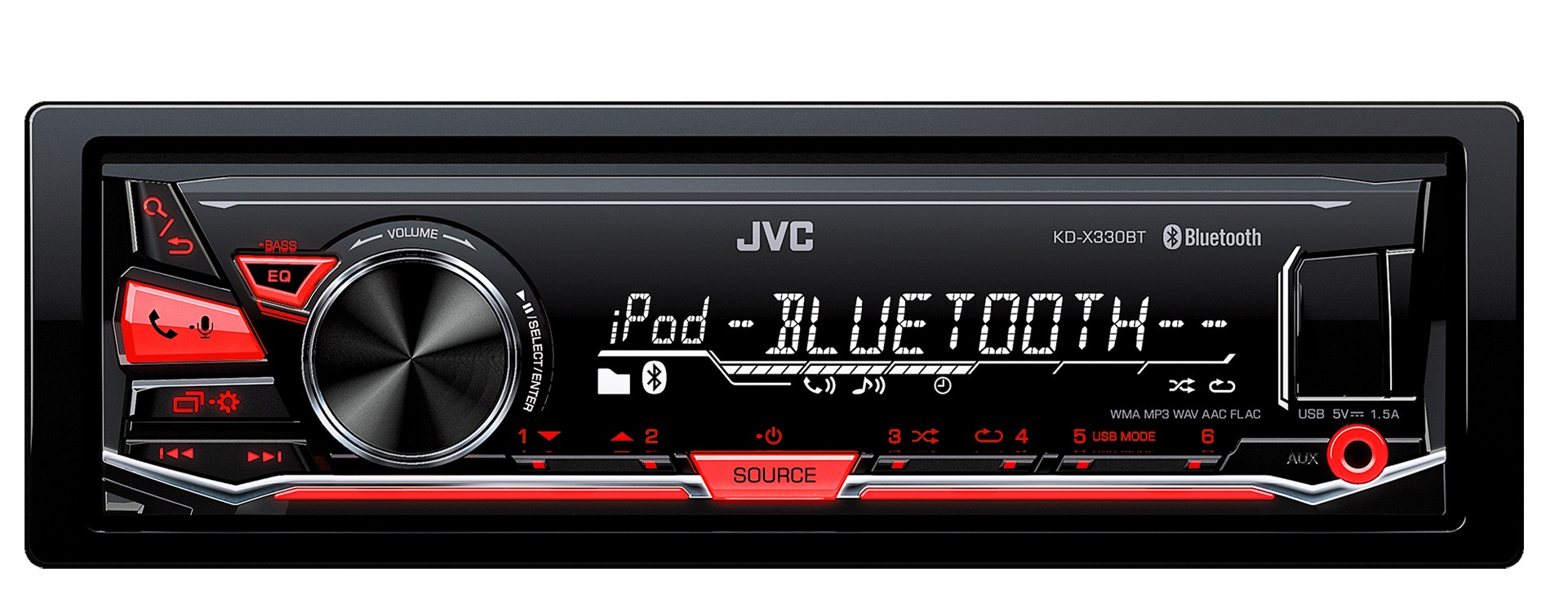

Radio Jvc Kd x330BT

RADIO JVC KD X330BT

Media Playback

MP3/WMA Compatible with ID3 Tag/WMA Tag USB
WAV Compatible with Tag USB
FLAC Compatible with Tag USB

Bluetooth Control

Bluetooth Control [1] Yes (Built-in, Wired-Mic included)
2 Phones Full-Time Connection Yes
Hands Free Call (HFP) Yes (HFP 1.6 wideband speech)
Audio Streaming & Control (A2DP, AVRCP) Yes
Voice Recognition Dialing (compatible mobile phone required) Yes
Siri Eyes Free Mode for iPod/iPhone Yes
Phone Book Access Profile (PBAP) Yes
iPhone & Android Automatic Pairing Yes

Android Control

Android Music Playback (AUDIO MODE and AUTO MODE) Yes (AUDIO MODE & AUTO MODE) [2]
Pandora Control Yes (via Bluetooth®)
Battery Charge Yes (USB: 1.5A Max.)

iPod/iPhone Control

iPod/iPhone Music Playback Yes
Random/Repeat Play Yes
Text Yes
Battery Charge Yes (USB: 1.5A Max.)
Pandora Control Yes (USB)

USB

Position Front
Random/Repeat Play Yes
USB Power Supply Yes (1.5A)
USB Mass Storage Class (for music files) Yes
Drive Change Mode for Mass Storage Class Yes

Tuner

Radio Data System (RDS) Yes (with Radio Text Plus)
Digital Processing Tuner Yes
Preset Stations 18FM + 6AM + 12SW
Strong Station Memory (for FM) Yes
Radio Timer Yes (Once/Daily/Weekly)
Tuner Preset Memory (for power disconnection) Yes

Frequency Range 87.5 - 108.0MHz
Usable Sensitivity 8.2dBf (0.71uV/75 ohms)
Quieting Sensitivity (46dB) 17.2dBf (2.0uV/75 ohms)
Stereo Separation 40dB

Frequency Range (MW) 531 - 1,611kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
Sensitivity (MW) 28.2uV,(SW) 32uV

Audio

Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
Typical Power Output 22W x 4 (Full Bandwidth Power, at less than 1% THD)
MOS-FET Amplifier Yes
Sub woofer Direct Connection (Mono Lch) Yes
Audio DAC Yes

13-Band Graphic EQ Yes
Easy EQ Setting Yes
Preset EQ Yes (8-preset)
Source Link EQ Yes
Loudness Control Yes (Off/Low/High)
High-Pass Filter/Low-Pass Filter Yes/Yes
K2 Technology Yes
Space Enhancement Yes
Sound Response Yes
Sound Lift Yes
Volume Link EQ Yes
Load Impedance 4 ohms (4 - 8 ohms)
Pre-Output Level 4.0V
Line Output Impedance Less than 600 ohms
Subwoofer Output Level 4.0V

Inputs and Outputs

AUX Input 1 (Front)
Line Output Terminals (Pair) 2 Pairs (Front + Rear/Subwoofer Selectable)
Subwoofer Output with Level/Frequency Control Yes (Level -50 - +10)

Display

Display Type
Illumination Colour White (LCD), Red (Key)
Spanish Text Display Compatible Yes
Auto Dimmer Yes
Brightness Control Yes

General

Detachable Face Panel Yes
Carrying Case Yes
Wireless Remote Control Yes
Steering Remote Control Ready Yes
Dimensions (W x H x D)
Installation Size 182 x 53 x 107mm
Weight 0.6kg

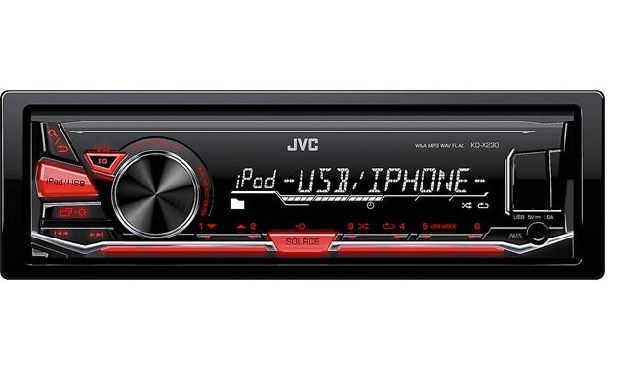

Radio Jvc Kd X-230

RADIO JVC KD X-230
