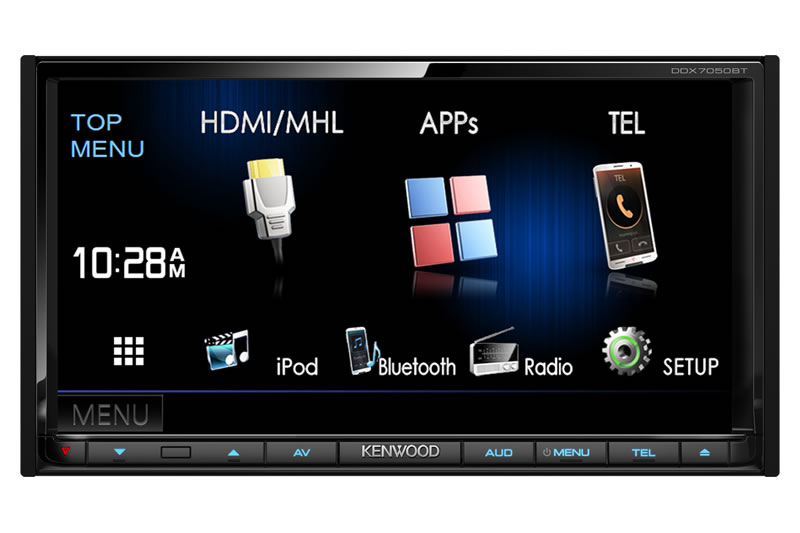

Radio Kenwood Ref: DDX7050BT WBT EXCELON USB/Bluetooth
Model Name DDX7050BT
Monitor Section Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm(W) x 81.6 mm(H) , 6-3/16(W) x 3-3/16(H)inches
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby digital
MP3/WMA/AAC/DivX
Video Decoder MPEG1/MPEG2
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 22,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 94dB(DVD-Video 96k)
Dynamic range 91dB(DVD-Video 96k)
DISC Format DVD-Video/DVD-VR/VIDEO-CD/CD-DA
Sampling frequency 44.1kHz/48kHz
96kHz
Quantifying bit number 16/20/24bit
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32
Maximum Power Supply Current DC5V=1.0A
D/A Converter 24Bit
Audio Decoder MP3/WMA/AAC/WAV/FLAC
Video Decoder MPEG1/MPEG2/H.264/WMV/JPEG/BMP/PNG
HDMI I/F Section Type A
MHL Section Supported Version MHL 2
Maximum Power Supply Current DC5V=900mA
Bluetooth Section Technology Bluetooth Ver3.0+EDR
Frequency 2.402 – 2.480 GHz
Output Power +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC/AAC/MP3
Profile HFP(Hands Free Profile) V1.6
A2DP(Advanced Audio Distribution Profile) V1.2
AVRCP(Audio/Video Remote Control Profile) V1.5
GAP(Generic Access Profile)
HID(Human Interface Device Profile)
PBAP(Phonebook Access Profile)
SDP(Service Discovery Profile)
SPP(Serial Port Profile) V1.2
DSP Section Graphics equalizer BAND 5Band
Frequency(Hz) 62.5/250/1k/4k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER frequency Through/50/60/80/100/120/150/180/220
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 50/60/80/100/120/Through
SLOPE -6/-12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0～610 [cm] ( 2cm / Step )
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency range
(Frequency step) 87.5 MHz - 108.0 MHz
(50 kHz)
Usable sensitivity
S/N:30 dB 7.2dBf
0.63 μV / 75 Ohms
Quieting sensitivity
S/N:50 dB 15.2 dBf
1.58μV/75Ohms
Frequency response
(±3.0 dB) 30Hz - 15kHz
S/N( dB) 68 dB(MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range
(Frequency step) 530kHz - 1700kHz
(10kHz)
Usable sensitivity 29dBμ
Video Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level(mini jack) 2V / 25kOhms
Video Output level (RCA jack) 1Vp-p / 75Ohms
Audio Output level (mini jack) 1.2V / 10kOhms
Audio Maximum Power Output 50Wx4
Typical Power Output Full Bandwidth Power
(at less than 1%THD)
22Wx4
Preout level(V) 4V / 10kOhms
Preout impedance(Ohms) =< 600 Ohms
Speaker Impedance(Ohms) 4-8 Ohms
General Operating voltage 14.4V(10.5V to 16V)
Maximum Current consumption 10A
Installation Dimensions WxHxD 182mm x 112mm x162mm
7-3/16 x 4-7/16 x 6-6/16 inch
Operational temperature range -10°C to +60°C
Weight Main unit 2.5kg
5.5lbs
