ESPECIFICACIONES:

• RMS Power 4Ω 60w x 4ch + 200w
• RMS Power 2Ω 80w x 4ch + 350w
• RMS Power 4Ω Bridged 160w x 2ch + 350w

Product Description

Cars come in all different shapes, most in the same size; compact. So, we’ve engineered these mini Picassos to fit in virtually any location in your ride. Other sport compact amplifiers use bizarre technologies with psuedo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.

Features:

• Class D Digital Full Range Amplifier
• Full MOSFET PWM Power Supply
• SMD Technology on Double Sided PCB
• 8ga Power Terminals & 8ga Speaker Outputs
• High & Low Level Signal Inputs
• 2-Ohm Stereo, 4-Ohm Bridged Stable
• Remote Mount Gain Control Included
• Variable 35Hz~250Hz 12dB High/Low Pass Filter
• Variable 0-12dB 45Hz Bass Boost
• Total Harmonic Distortion: 0.5%
• Frequency Response: 10Khz-35Khz
• Signal-to-Noise Ratio: 70dB
• Damping Factor: > 250
• Stereo Channel Separation: < 55dB
• Input Sensitivity: 0.5mV-12V
• Dimensions: 4.75″w x 1.5″h x 10.3L
• RMS Power 4Ω 60w x 4ch + 200w
• RMS Power 2Ω 80w x 4ch + 350w
• RMS Power 4Ω Bridged 160w x 2ch + 350w
• Remote Gain Control Included
• Dimensions 10.3"(4.75"w x 1.5"h)

ESPECIFICACIONES:

• RMS Power 4Ω 400
• RMS Power 2Ω 650
• Remote Gain Control Included

Product Description

Cars come in all different shapes, most in the same size; compact. So, we’ve engineered these mini Picassos to fit in virtually any location in your ride. Other sport compact amplifiers use bizarre technologies with psuedo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.

Features:

• Small Compact 4.75″ Wide Chassis
• 2-Ohm Stable Class D Monoblocks
• MOSFET PWM Power Supply
• 50-250Hz Variable 12dB LP Crossover
• 10-50Hz Variable 12dB Subsonic Crossover
• 12dB 45Hz Bass Boost
• 200mv-6V Low Level Input Sensitivity
• High Level Input
• Dash Mount Remote Gain Control Included

SPECIFICATIONS PN1.650D

• RMS Power 4Ω 400
• RMS Power 2Ω 650
• Remote Gain Control Included
• Dimensions
• (4.75"w x 1.5"h) 9"

ESPECIFICACIONES:

• RMS Power @ 4Ω 60×4 & 170×1
• RMS Power @ 2Ω 85×4 & 270×1
• RMS Power @ 4Ω Bridged 170×2 & 270×1

Product Description

• Brushed Black Aluminum Finish w/ Accent Lighting
• 4-ohm Bridged, 2-ohm Stereo Class A/B Full Range
• 2-ohm Stable Class A/B Monoblock
• Variable 12dB High, Low, & Subsonic Crossovers
• High Level or 200mV-6V Low Level Input
• 4g Power & 8ga Speaker Terminals
• 6/12dB 45Hz Bass Boost
• 180° Phase Switch (D)
• Class D Strappable w/ 2-ohm Load

SPECIFICATIONS P5.610

• RMS Power 4Ω 60 x 4 & 170 x 1
• RMS Power 2Ω 85 x 4 & 270 x 1
• RMS Power 4Ω Bridged 170 x 2 & 270 x 1
• Dimensions
• (8.25"w x 2"h) 18.75"

ESPECIFICACIONES:

RMS Power @ 4Ω 600 x 1
RMS Power @ 2Ω 1,000 x 1
RMS Power @ 1Ω 1,500 x 1

Product Description

• Brushed Black Aluminum Finish w/ Accent Lighting
• 1-ohm Stable Class D Monoblocks
• Variable 12dB High, Low, & Subsonic Crossovers
• High Level or 200mV-6V Low Level Input
• 4g Power & 8ga Speaker Terminals
• 6/12dB 45Hz Bass Boost
• 180° Phase Switch (D)
• Class D Strappable w/ 2-ohm Load
• Dash Mount Remote Gain Control Included

SPECIFICATIONS P1.1500D

• RMS Power @ 4Ω 600 x 1
• RMS Power @ 2Ω 1,000 x 1
• RMS Power @ 1Ω 1,500 x 1
• Remote Gain Control Included
• Dimensions
• (8.25"w x 2"h) 16"

ESPECIFICACIONES:

• RMS Power @ 4Ω 400 x 1
• RMS Power @ 2Ω 750 x 1
• RMS Power @ 1Ω 1,000 x 1

Product Description

• Brushed Black Aluminum Finish w/ Accent Lighting
• 1-ohm Stable Class D Monoblocks
• Variable 12dB High, Low, & Subsonic Crossovers
• High Level or 200mV-6V Low Level Input
• 4g Power & 8ga Speaker Terminals
• 6/12dB 45Hz Bass Boost
• 180° Phase Switch (D)
• Class D Strappable w/ 2-ohm Load
• Dash Mount Remote Gain Control Included

SPECIFICATIONS P1.1000D

• RMS Power @ 4Ω 400 x 1
• RMS Power @ 2Ω 750 x 1
• RMS Power @ 1Ω 1,000 x 1
• Remote Gain Control Included
• Dimensions
• (8.25"w x 2"h) 11.75"

ESPECIFICACIONES:

Clean and classy, Tarantula amplifiers are all new for 2013. Overcompensating power supplies deliver the juice when it’s needed most. Monoblock subwoofer amplifiers benefit from high efficiency Class D technology, and full range models fall back on reliable Class A/B circuitry design for supurb sound quality. The best of both worlds, a hybrid Class D & Class A/B 5 channel model offers sound quality and high power in one chassis.

2-ohm Stereo & 4-ohm Bridged Full Range Operation
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
Direct Short, Thermal, & Overload Circuits Protect Ampllifier
200mV-6V High Level or Low Level RCA Input
Variable 12dB High Pass, Low Pass, & Subsonic Crossovers

RMS Power 4Ω 50 x 4
RMS Power 2Ω 70 x 4
RMS Power 4Ω Bridged 140 x 2

RMS Power 4Ω    50 x 4
RMS Power 2Ω    70 x 4
RMS Power 4Ω Bridged    140 x 2

SPECIFICATIONS TA4.280
Channels 4
RMS Power @ 4Ω, 14.4V 4 x 90
RMS Power @ 2Ω, 14.4V 4 x 120
RMS Power @ 4Ω Bridged, 14.4V 2 x 240
Total Harmonic Distortion (4Ω power) 1%
Signal-to-Noise Ratio (4Ω power) 108db
Damping Factor (100Hz, 4Ω) 141
Ch. 1 & 2, 3 & 4HPF (12db slope) 50-20kHz
External Fuse Required 2 x 25A
Dimensions (8"w x 2"h) 12.00"

ESPECIFICACIONES:

MODEL: RMX151
PN: 147907713
Associated Number: RM-X151


Originally supplied with models: CDXA251C, CDXF5510, CDXGT07, CDXGT130, CDXGT300, CDXGT30W, CDXGT310, CDXGT315C, CDXGT31W, CDXGT320, CDXGT32W, CDXGT330, CDXGT400, CDXGT410, CDXGT420IP, CDXGT420U, CDXGT42IPW, CDXGT44IP, CDXGT500, CDXGT50W, CDXGT510, CDXGT51W, CDXGT520, CDXGT52W, CDXGT530UI, CDXGT610UI, CDXGT61Ui, CDXGT61UT, CDXGT620IP, CDXGT62IPW, CDXGT630UI, CDXGT81UX, CDXH905IP, CDXHR70MS, CDXHS70MS, CDXHS70MW, CDXM30, CDXM50IP, CDXM60UI, CDXMR50IP, CDXRA700, MEX1GP

ESPECIFICACIONES:

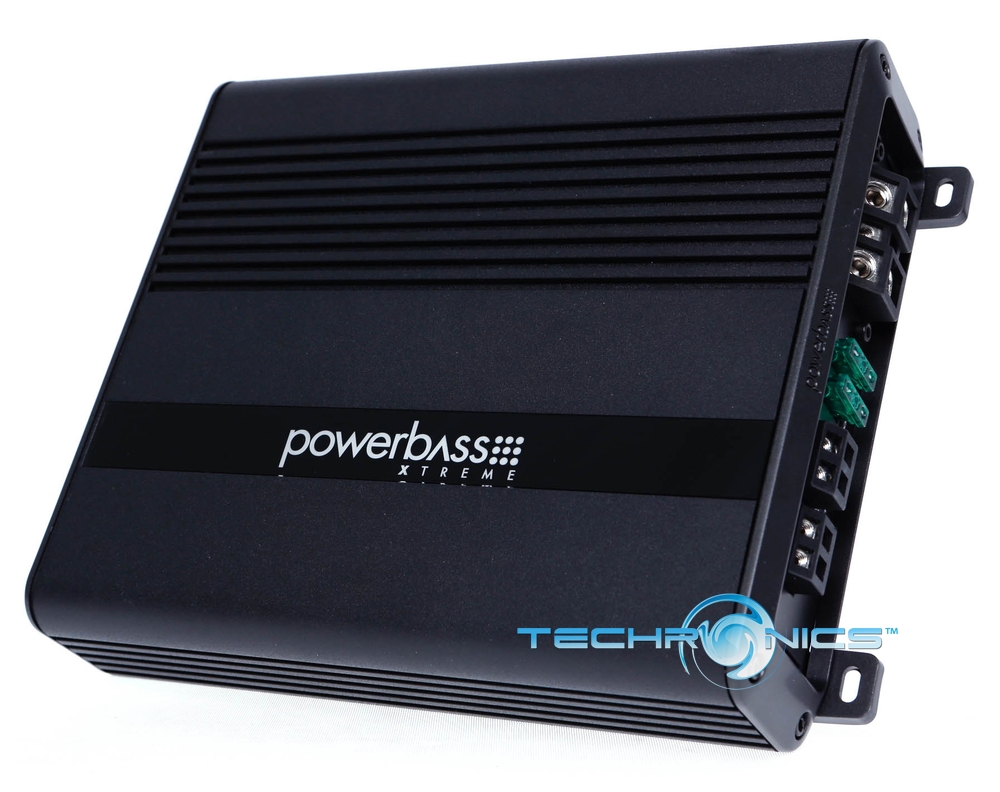

• PowerBass XMA-2400IR 1600W 2 Channel Full Range Class D Mini Car Audio Amplifier
• Power Handling:
• 4 Ohm - 200 watts x 2
• 2 Ohm - 400 watts x 4
• 4 Ohm Mono - 800 watts x 1
• Peak Power - 1600 watts
• High Damping Control Circuit
• High Efficiency SMD Circuit Technology
• Ultra Low Current Draw With More Than A 85% Efficiency Rating
• Blue LED Logo, Power And Speaker Terminal Lighting
• Channels: 2
• Total Harmonic Distortion: <0.2 %
• Frequency Response: 10 Hz - 40,000 Hz
• S/N Ratio: >90 dB
• Input Sensitivity: 0.25 V - 6.0 V
• Crossover Slope: 12 dB
• High-Pass Crossover Freq: 80 Hz - 350 Hz
• Low-Pass Crossover Freq: 25 Hz - 250 Hz
• Variable Subwoofer EQ: 0 / +12 / +18dB
• Subwoofer EQ Frequency: 45 Hz
• Dimensions (in Inches): 9.1" x 7.1" x 2.0"

ESPECIFICACIONES:

• RMS Power Handling:
• 4-ohm Power: 250 watts x 1 Channel
• 2-ohm Power: 400 watts x 1 Channel
• 1-ohm Mono Power: 600 watts x 1
• Peak: 1200 watts
• Remote Gain Control Included
• Total Harmonic Distortion: under 0.4%
• Frequency Response: 10Hz - 300Hz
• S/N Ratio: Greater Than 85dB
• Input Sensitivity: 0.2 - 6.0 Volts
• Crossover Slope: 24dB
• Low-Pass Crossover Freq (Hz): 50Hz~250Hz
• Variable Subsonic Frequency: 10 - 50 dB
• Variable Subwoofer EQ: 0 /+ 18dB
• Subwoofer EQ Frequency: 45Hz
• Dimensions: 8.4" x 4.5" x 1.6"
• Brand New

ESPECIFICACIONES:

• 640 Watt High Efficiency Full-Range Class D Design
• 2-OHM Stable Stereo Amplifier
• International Rectifier® Chip Set
• Ultra Low Current Draw
• Double Sided Copper Plated PCB
• Conformal Coated PC Board
• PWM MOSFET Power Supply
• Digital Sound Optimization Circuitry
• High Damping Control Circuit
• High Current Voltage Ripple Rejection Circuitry
• 3.5mm AUX Input
• Remote Soft Delay Turn On/Off Circuit
• Variable Low/High Pass Electronic Crossover
• Variable 12dB Bass Boost EQ
• Variable Gain Control
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
