Bajo 12" Powerbass 3XL-121D

ESPECIFICACIONES:

Size: 12"
Power Handling: 850 watts RMS/1700 watts Peak
Nominal Impedance: 2 x 1 Ohm
Voice Coil Size: 3"
Frequency Response: 31 Hz - 450 Hz
Sensitivity: 91 dB
Motor Structure: 552 oz
Mounting Depth: 7,13"
Depth: 197 mm



T/S Parameters:

VC Impedance (ohms): 1 Ohm + 1 Ohm
Test Impedance: 2.07 ohm
Fs: 32.3 Hz
SD: 530.9 sqCM
Vas: 36 Liter
Cms: 97.0 µM/N
Mms: 250.31 g
BL™: 15.36
Qms: 4.57
Qes: 0.4
Qts: 0.39
No: 0.265 %
Spl: 91 dB
Xmax: 13.5 mm



Bajo Powerbass 12" XL-124MF

ESPECIFICACIONES:

XL-124MF 12" Marine Subwoofer

Marine Grade 12" Subwoofer
Injection Molded UV-Treated White Polypropylene Cone
TPO Thermoplastic Polyurethane Surround
2.0" KSV Voice Coil Former
120 oz. Motor Structure
Insulated Tinsel Leads
Marine Grade Spider
White Powder Coated Stamped Steel Baskets
Gold Plated Input Terminals
250 Watts RMS/500 Watts Max

XL-124MF MARINE GRADE 12" SUBWOOFER

What better way to enjoy your day being out on the water in your boat is listening to your favorite music as well.

We have engineered the best musical reproduction solution with our XL Marine Grade woofers. They feature White UV inhibited Powder Coated Baskets, White UV Inhibited Poly Woofer Cone, Marine Grade Spider with Gold Input Terminals that delivers the best sonic bass reproduction on the water.

Sit back and relax knowing that you have put your music in the engineering hands of PowerBass.

Specifications

Nominal Impedance: 4-ohm
BL: 11.6
Voice Coil Size: 2 in
Material: Polypropylene
Magnet Size: 140 oz
Sensitivity (1W / 1M): 91 dB
Motor Structure: 39 oz
Cutout Diameter: 11 in
Mounting Depth: 5.59 in
Xmax: 9.5 mm
Spl: 91 dB
No: 0.32
Qts: 0.71
Qes: 0.75
Qms: 4.5
Mms: 117 g
Cms: 160 uM/N
Vas: 59 Ltr
SD: 490.9 sqCM
Fs: 35.0 Hz
Test Impedance: 3.4 ohm
VC Impedance: 4-ohms
Size: 12"
Sensitivity: 91 dB
Frequency Response: 32 Hz - 500 Hz
Voice Coil Size: 2"
Power Handling (RMS/Peak): 250 / 500 watts

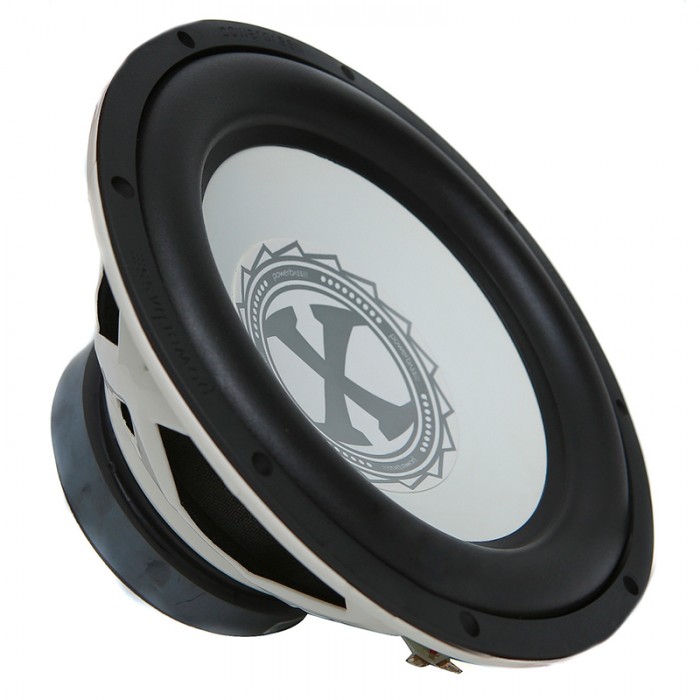

Bajo Powerbass 10" XL-104 MF

ESPECIFICACIONES:

  • Size: 10"
  • Power Handling (RMS/Peak): 200/400 watts
  • Nominal Impedance: Single 4-ohm
  • Voice Coil Size: 2" KSV
  • Frequency Response: 31Hz-500Hz
  • Sensitivity: 85 dB
  • Motor Structure: 120 oz.
  • Cutout Diameter: 9 1/8" (230.1mm)
  • Mounting Depth: 5.12 in
  • VC Impedance: 4 ohms
  • Test Impedance: 3.4 ohm
  • Fs: 38.0 Hz
  • SD: 333.3 sqCM
  • Vas: 29 Ltr
  • Cms:  135 µM/N
  • Mms: 82 g
  • BL™: 10.9
  • Qms: 4.2
  • Qes: 0.72
  • Qts: 0.68
  • No:  0.3
  • Spl: 90 dB
  • Xmax: 9.5 mm

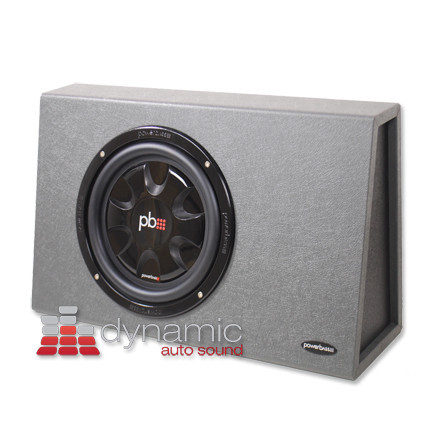

Bajo con Caja Powerbass PS WB110T

ESPECIFICACIONES:

  • Air Suspension Bass - One Piece Injection Molded Cone
  • 2" Vented KSV Voice Coil Formers
  • Large Roll Rubber Surrounds
  • Computer Optimized Acoustic Chamber
  • Custom Mounting Brackets
  • Single 10-inch Loaded Thin Mount Enclosure
  • Power Handling (RMS/Peak): 275/550 watts
  • Nominal Impedance: Single 4-ohm Input
  • Frequency Response: 38Hz - 280Hz

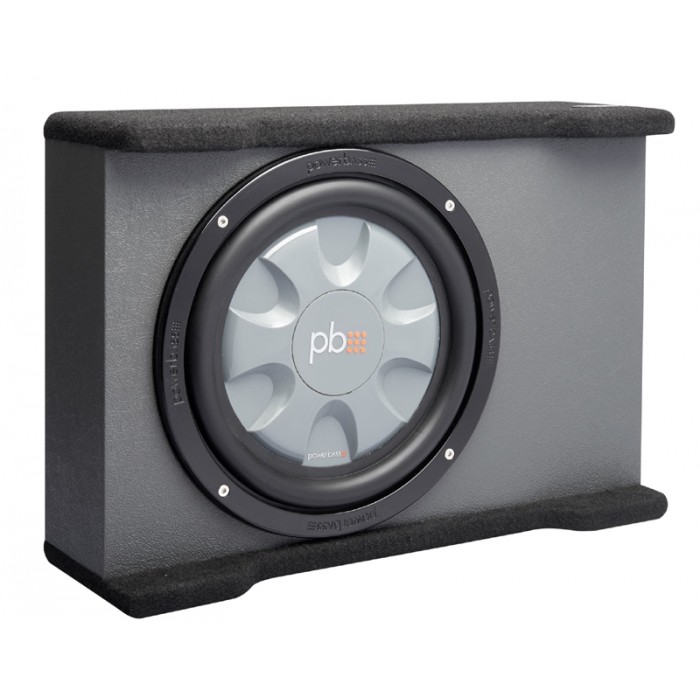

Bajo con Caja Powerbass PS DF110T

ESPECIFICACIONES:

  • Air Suspension Enclosure
  • Heavy-duty Box Design
  • Computer Optimized Acoustic Chamber
  • Single 4-ohm Color Coded Input
  • Size: Single 10"
  • Power Handling (RMS/Peak): 275/550 watts
  • Nominal Impedance: Single 4-ohm Input
  • Frequency Response: 38Hz - 280Hz
  • Height: 21.4 in
  • Width: 17.76 in
  • Top Depth: 5.63 in
  • Bottom Depth: 5.63 in
  • Package Dimensions: L 20" x W 15" x H 8.25 in.
  • Package Weight: 20.55 lbs.

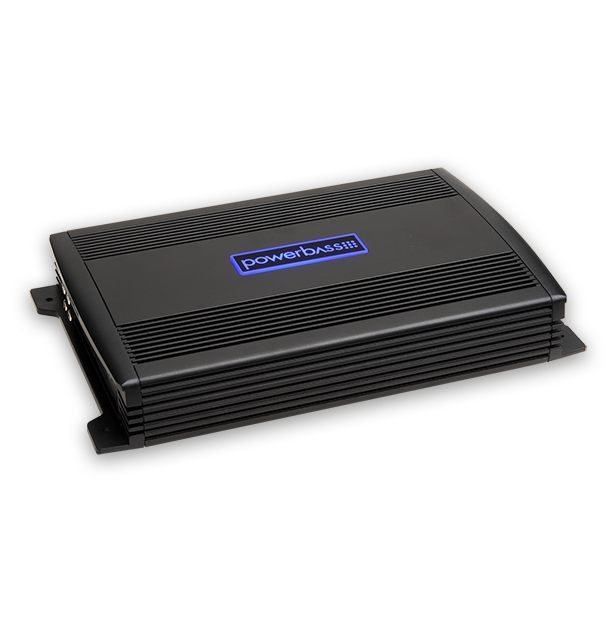

Amplificador Powerbass ASA3 400.1 Class-A/B

ESPECIFICACIONES:

  • 400 Watt High Efficiency Class A/B Design
  • 2-OHM Stable Mono Block Amplifier
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Switchable Logo Back Lighting

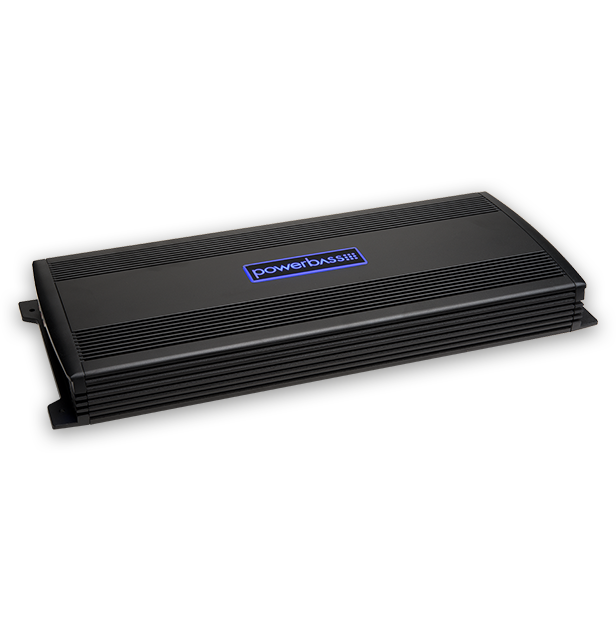

Amplificador Powerbass ASA3 1100.5 5ch

ESPECIFICACIONES:

  • 5-Channel 1,100 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • High Level (Speaker)/Low Level (RCA) Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting
