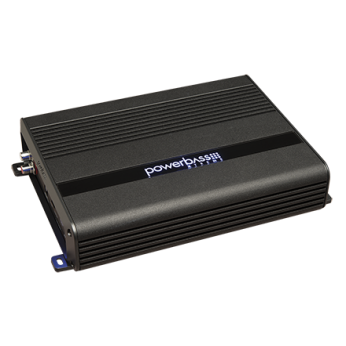

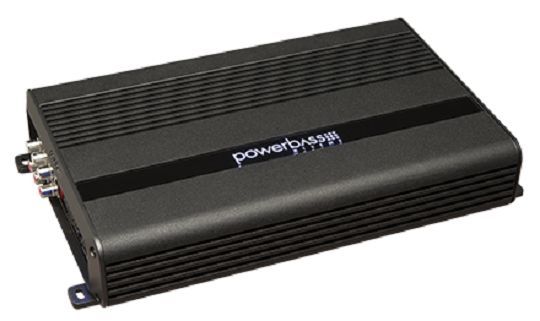

Amplificador Powerbass XMA 600D

ESPECIFICACIONES:

Monoblock Class D Amplifier

4-ohm Power: 250 watts x 1
2-ohm Power: 450 watts x 1
1-ohm Mono Power: 600 watts x 1

High Damping Control Circuit
High Efficiency SMD Circuit Technology
Ultra Low Current Draw With More Than A 85% Efficiency Rating
Dual Link Circuitry (2-ohm minimum)
Blue LED Logo Lighting
Variable Remote Level Control
Peak Power: 1200 watts
Total Harmonic Distortion: <0.4 %
Frequency Response: 10 Hz - 300 Hz
S/N Ratio: >100 dB
Input Sensitivity: 0.25 V - 6.0 V
Crossover Slope: 24 dB
Low-Pass Crossover Freq: 20 Hz - 250 Hz
Variable Subsonic Freq: 10 - 50 dB
Variable Subwoofer EQ: 0 - 18 Hz
Subwoofer EQ Frequency: 40 Hz- 100 Hz
Dimensions (in Inches): 10.3" x 7.1" x 2.0"

Amplificador Powerbass ACS 500D

ESPECIFICACIONES:

  • XAX Series Monoblock Class D Mini Car Amplifier
  • RMS Power Rating:
  • 4 ohms: 250 watts x 1 chan.
  • 2 ohms: 400 watts x 1 chan.
  • 1 ohm: 500 watts x 1 chan.
  • MAX Power Rating:
  • 1 ohm: 1,000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Philips/NXP chip set with double sided copper plated PCB
  • Wired remote gain level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40-100 Hz)
  • Virtual silence turn on/off mute circuit
  • High damping control circuit
  • High efficiency SMD circuit technology
  • Ultra low current draw with more than a 85% efficiency rating
  • Dual link power doubling circuitry
  • Mono channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Blue LED logo, power and speaker terminal lighting
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink with induction cooling fan for extreme heat dissipation
  • Platinum-plated Tiffany RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
  • Level: 500mV-6V
  • Variable low-pass filter (25-250 Hz, 12 dB/octave)
  • Subsonic filter (10-50 Hz, 12 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >200
  • Frequency response: 20-250 Hz
  • Also found as: Power Bass Xtreme XAX-500D
  • Dimensions: 10-1/4"L x 7-1/16"W x 1-15/16"H

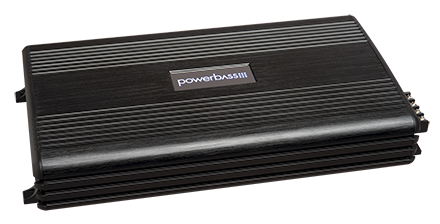

Amplificador Powerbass ACA 480.4

ESPECIFICACIONES:

  • PowerBass ACA-480.4 960W 4 Channel Class AB Compact Car Amplifier
  • Power Handling:
  • 4 ohm: 60 watts x 4 chan
  • 2 ohm: 120 watts x 4 chan
  • 4 ohm Bridge:  240 watts x 2 chan
  • Peak Power:960 watts
  • Class A/B
  • Ultra Efficient Design
  • High / Low Level Inputs
  • Variable 12dB High / Low Pass Electronic Crossover
  • Selectable Electronic Bass EQ
  • Lighted Mirror Badge Blue
  • Total Harmonic Distortion:<0.3%
  • Frequency Response:10Hz~50,000Hz
  • S/N Ratio:>100dB
  • Input Sensitivity:0.25 - 6.0 volts
  • Crossover Slope:12dB
  • High-Pass Crossover Freq (Hz):50Hz~1000Hz
  • Low-Pass Crossover Freq (Hz):35Hz~250Hz
  • Switchable Subwoofer EQ:0/+6/+12dB
  • Subwoofer EQ Frequency:45Hz
  • Dimensions (in Inches):13.2" x 7.1" x 2.0"

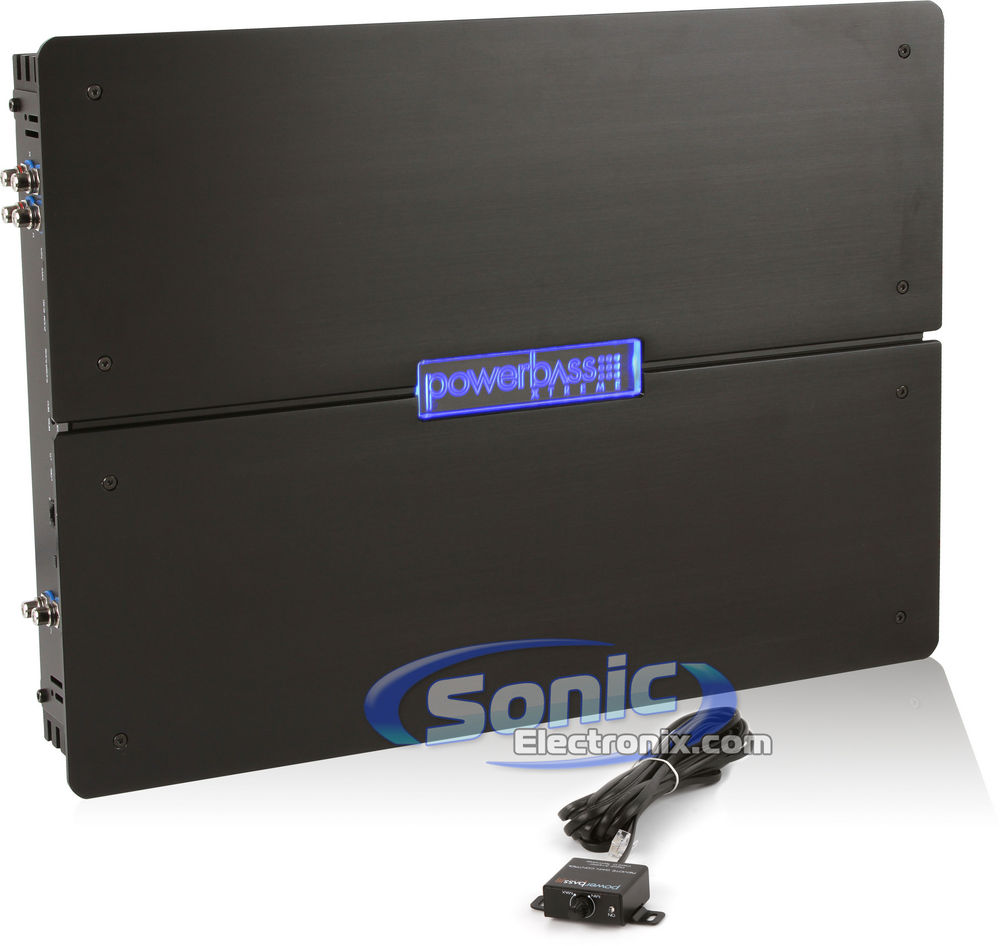

Amplificador Powerbass XTA-4000D

ESPECIFICACIONES:

  • XTA Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V):
  • 4 ohms: 1000 watts x 1 chan.
  • 2 ohms: 2000 watts x 1 chan.
  • 1 ohm: 4000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
  • Dual link strapping capability (set-to-set bridgeable at 2 ohm)
  • Heavy-duty brass CNC machined terminal blocks
  • Soft delay remote turn-on/off system eliminates "pop" noise
  • Mono channel operation
  • Blue Power-on Edge-lit PowerBass Logo
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
  • Level: 200mV-6.0V
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (15-50 Hz)
  • Phase Shift: 0-180°
  • Damping factor: >300 into 4 ohms
  • Frequency response: 10-300 Hz
  • This amplifier requires a 300A external fuse
  • Also found as: Power Bass Xtreme XTA-4000D
  • Dimensions: 18"L x 13-1/2"W x 2-3/4"H

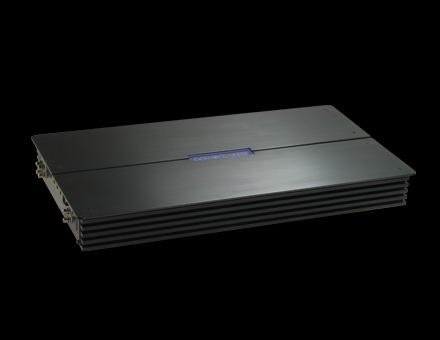

Amplificador Powerbass XTA 5000D

ESPECIFICACIONES:

  • XTA Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V):
  • 4 ohms: 1250 watts x 1 chan.
  • 2 ohms: 2500 watts x 1 chan.
  • 1 ohm: 5000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
  • Dual link strapping capability (set-to-set bridgeable at 2 ohm)
  • Heavy-duty brass CNC machined terminal blocks
  • Soft delay remote turn-on/off system eliminates "pop" noise
  • Mono channel operation
  • Blue Power-on Edge-lit PowerBass Logo
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
  • Level: 200mV-6.0V
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (15-50 Hz)
  • Phase Shift: 0-180°
  • Damping factor: >300 into 4 ohms
  • Frequency response: 10-300 Hz
  • This amplifier requires a 2 x 200A external fuses
  • Also found as: Power Bass Xtreme XTA-5000D
  • Dimensions: 24-1/2"L x 13-1/2"W x 2-3/4"H

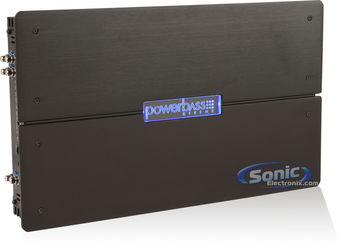

Amplificador Powerbass XTA 2250D

ESPECIFICACIONES:

  • XTA Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V):
  • 4 ohms: 565 watts x 1 chan.
  • 2 ohms: 1125 watts x 1 chan.
  • 1 ohm: 2250 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Dual link strapping capability (set-to-set bridgeable at 2 ohm)
  • Heavy-duty brass CNC machined terminal blocks
  • Soft delay remote turn-on/off system eliminates "pop" noise
  • Mono channel operation
  • Blue Power-on Edge-lit PowerBass Logo
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
  • Level: 200mV-6.5V
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (15-50 Hz)
  • Phase Shift: 0-180°
  • Damping factor: >300 into 4 ohms
  • Frequency response: 18-250 Hz
  • This amplifier requires a 150A external fuse
  • Also found as: Power Bass Xtreme XTA-2250D
  • Dimensions: 18-1/2"L x 10-3/4"W x 2-1/2"H

Amplificador Powerbass ASA 1200.2X

ESPECIFICACIONES:

  • Auto Sound Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
  • 4 ohms: 300 watts x 2 chan.
  • 2 ohms: 600 watts x 2 chan.
  • Bridged, 4 ohms: 1200 watts x 1 chan.
  • Max power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy ribbed heatsink for maximum heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 500mV - 8V
  • Frequency Response: 20 - 22,000 Hz
  • Total Harmonic Distortion (THD): <0.5%
  • Signal to Noise Ration: 90dB
  • Damping factor: >150
  • Selectable crossover mode: LPF / FULL / HPF
  • Variable high-pass filter: 40 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 40 - 250 Hz, 12 dB/octave
  • Selectable Subsonic filter: 28 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz
  • Fuse Rating: 40 A x 4
